Dream Rig Sales Event
Starting at $55,952 MAP*
Length
|
19' 3"
Horsepower
|
150 - 175
Beam
|
98"
Fuel
|
37 gal
Rod Box Lengths
|
8' 8" Port / 8' Center
Why We're Different
COLOR OPTIONS
SUMMIT WHITE
SILVER SPECTRUM
SAPPHIRE BLUE METALLIC
MIDNIGHT OIL METALLIC
CRIMSON METALLIC

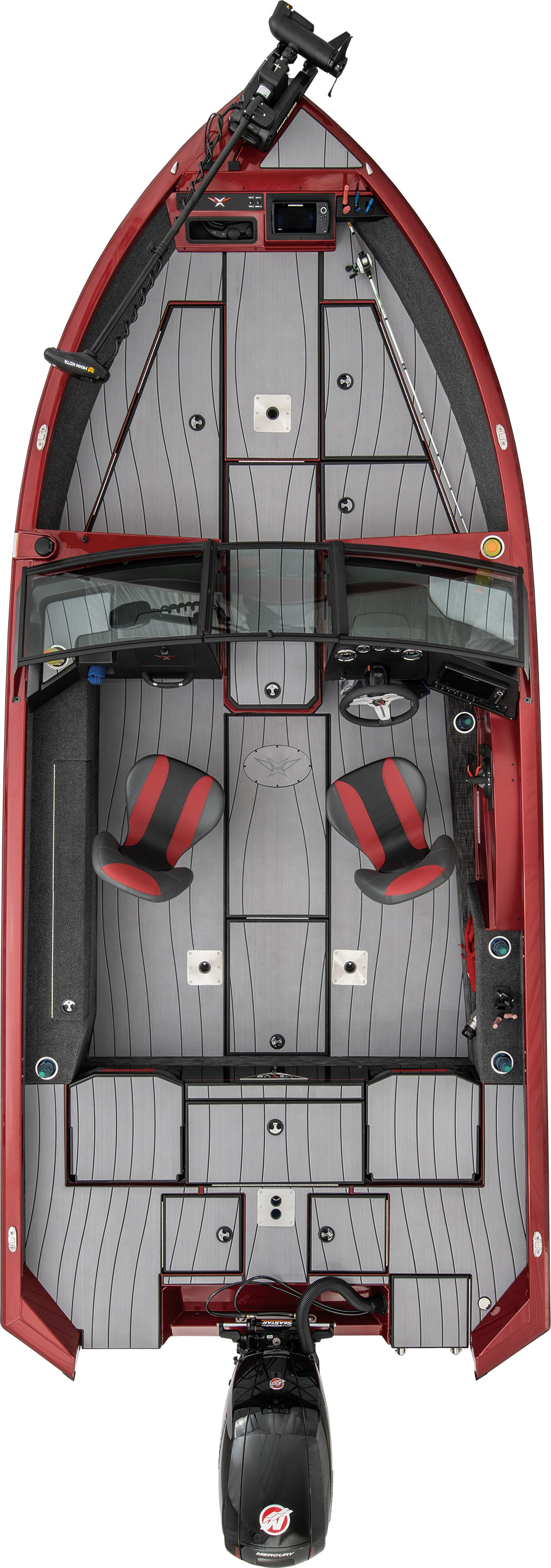

ABOUT THIS MODEL

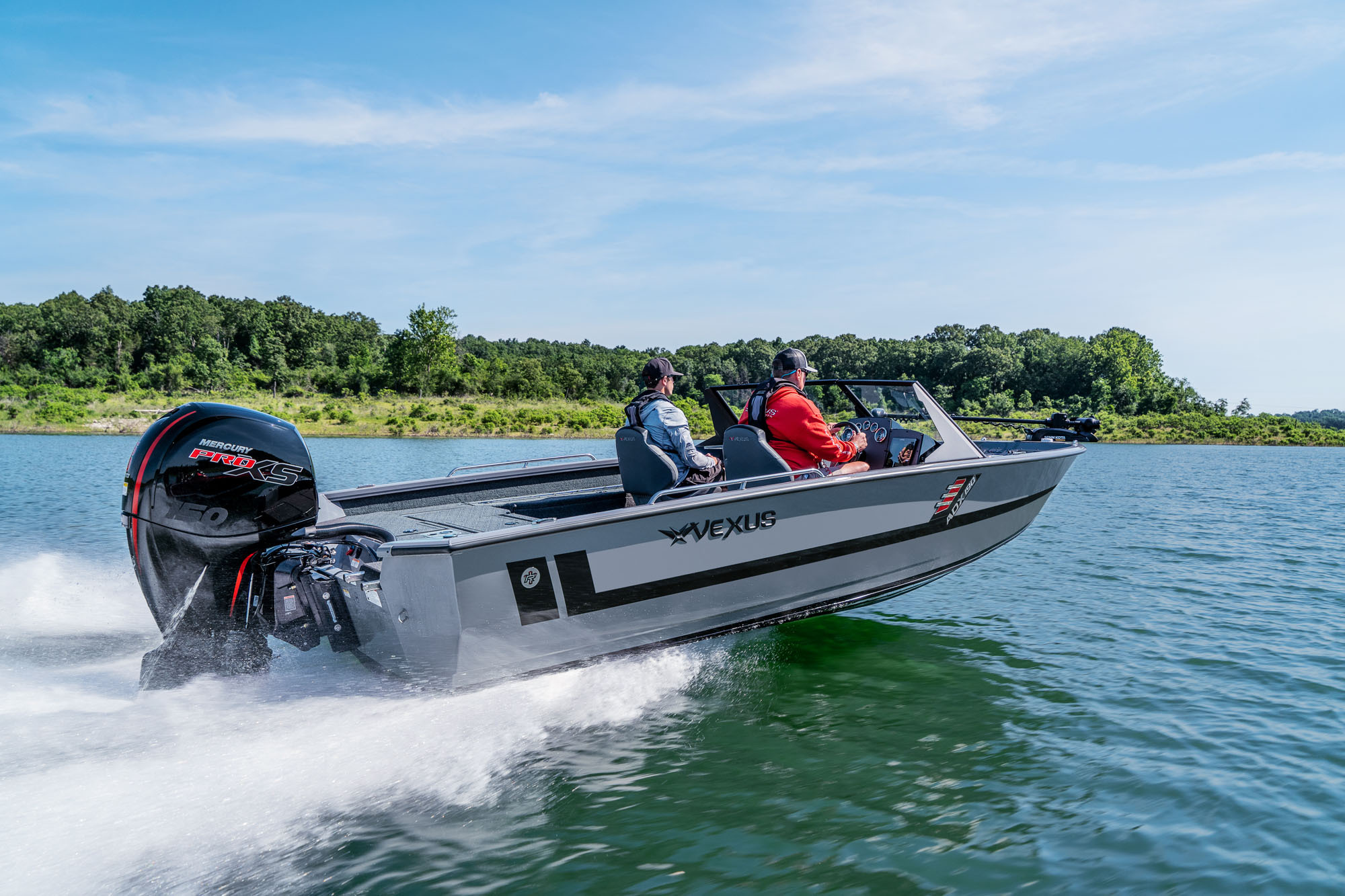

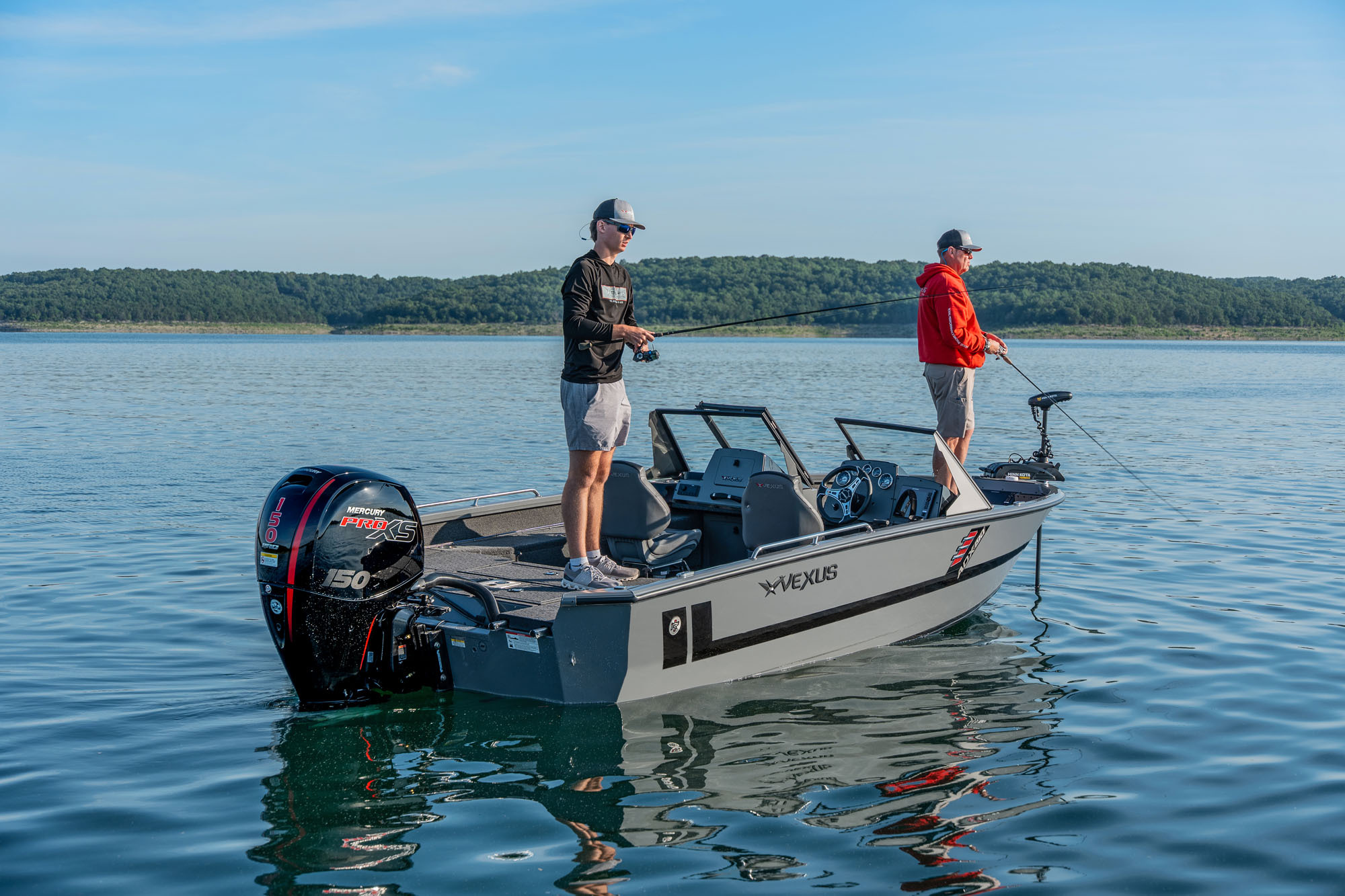

Looking for a fishing and family rig that’s built for non-stop action? A wide-open layout with room for seven? How about a ride that rivals glass and a groundbreaking hull that’s quick on its feet and locks onto fish? Equally impressive is the unparalleled strength and finish in this Glass-Infused Aluminum Hybrid™ platform. We’re talkin’ a serious fish and fun machine that’s extremely smooth, solid, spacious, and responsive. Just as important is how easy it is to launch, load, tow and stow, all without breaking the bank. It’s all here - designed and built by America’s Most Revolutionary Team of Angler/Craftsmen™.
Check out the long list of advantages in the deep vee ADX190. Whatever you’re chasing, from bass and walleye to just hanging out with the fam, it’s the Ultimate Recreation Rig™, performance-engineered to open up a world of water!
Check out the long list of advantages in the deep vee ADX190. Whatever you’re chasing, from bass and walleye to just hanging out with the fam, it’s the Ultimate Recreation Rig™, performance-engineered to open up a world of water!
FEATURES & ADVANTAGES
Expand
Close All
PERFORMANCE AND ENGINEERING
- Vexus® V2 Technology
- Available with Power of Choice Professionally Rigged Outboards
- All-Welded ADX High-Performance Hull (.125” bottom thickness)
- Vector Force™ Solid Transom
- Windshield Mounted to Boat Structure (Not Console) for Rock-Solid Stability
- Wide Beam-Forward Design for Increased Front Deck Space

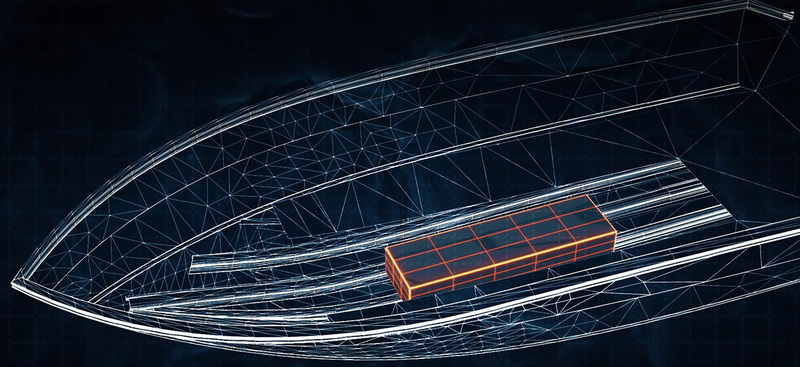

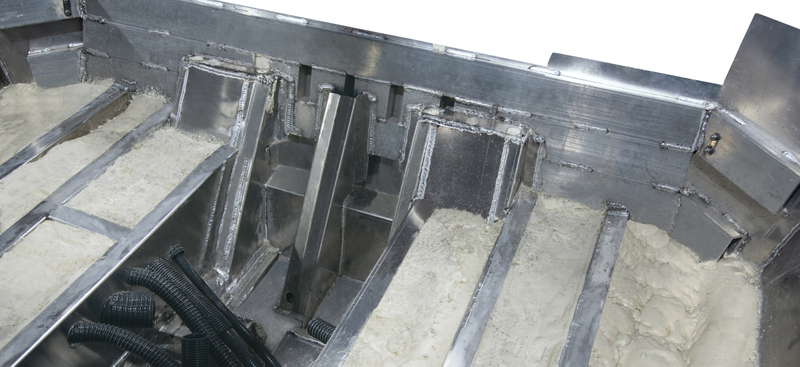

- Dense Base™ Superstructure Design
- Stainless Steel Prop
- Crank Battery includes Battery Tray and Tie-Down
- SeaStar™ Pro Hydraulic Steering

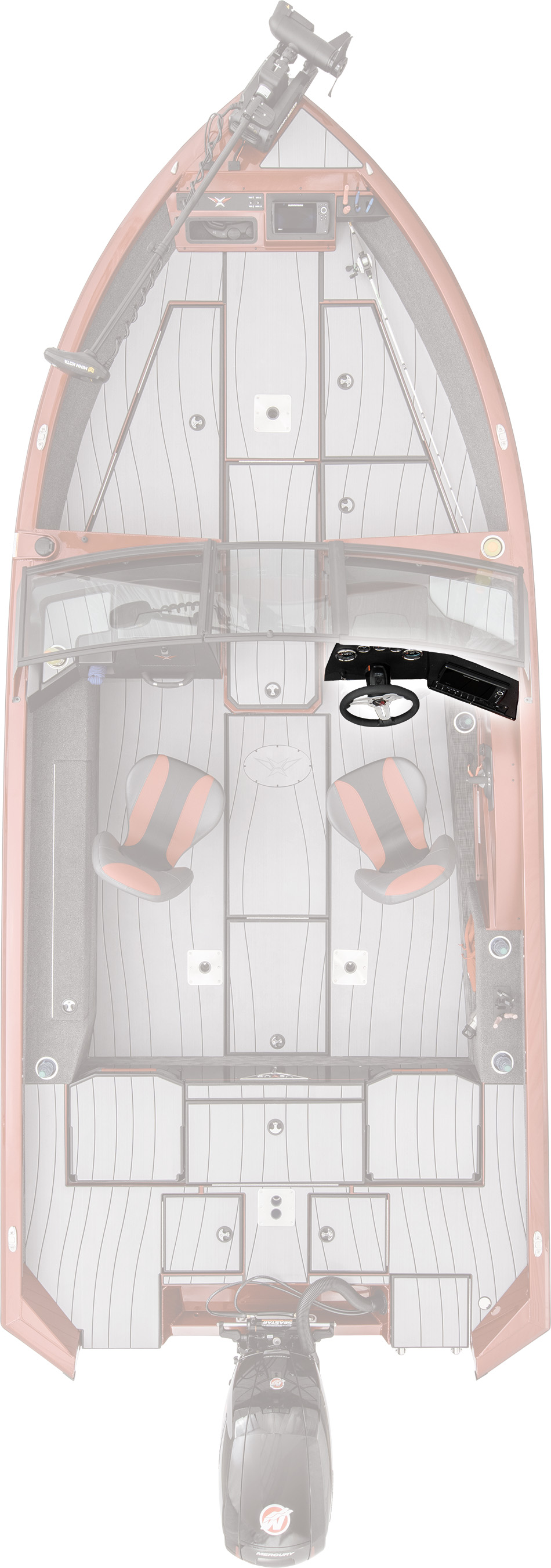

- Flush-Mounted Remote Throttle Control

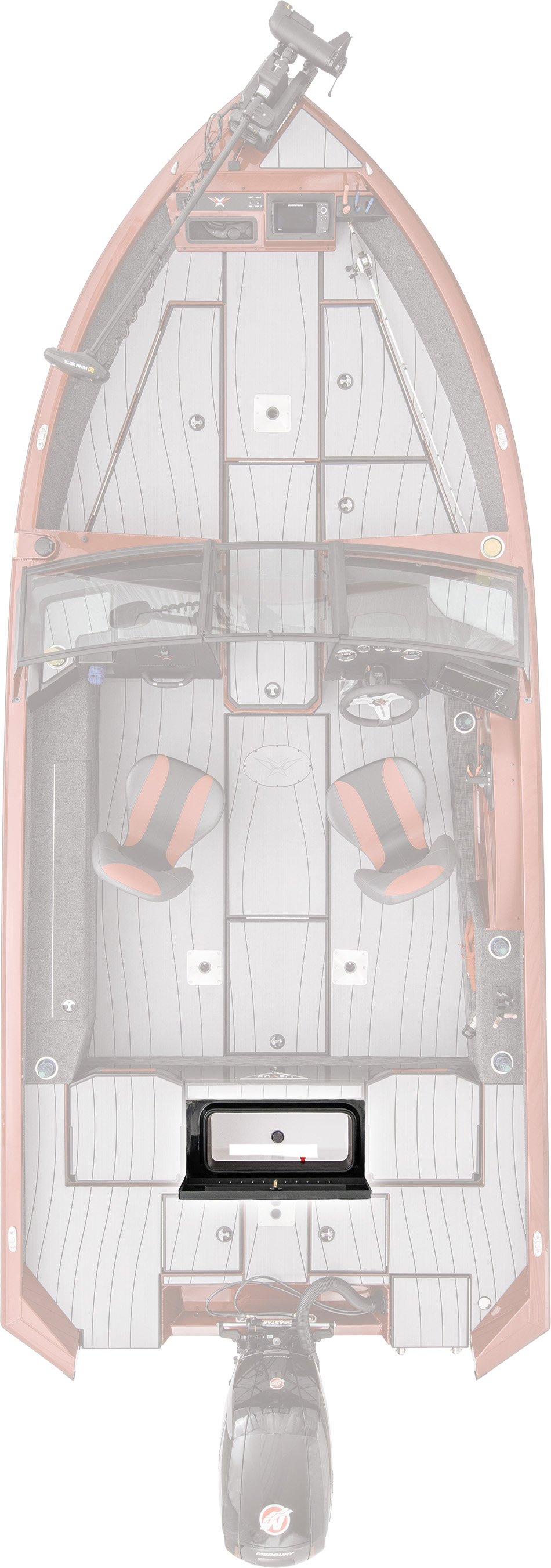

- Tournament Grade Fiberglass Aerated Livewell with Anti-Splash Ring and Pump-Out

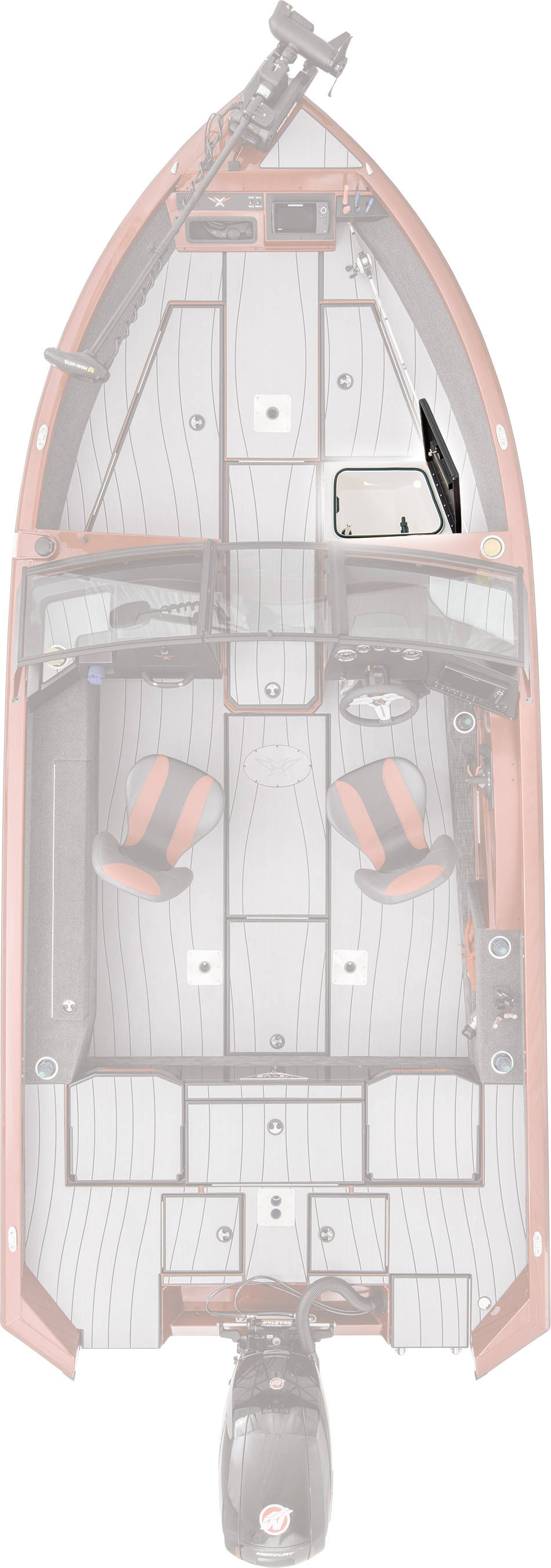

- Forward Aerated Baitwell
- Bow Trim and Navigation Light Switches
- Speed, Tach, Fuel, Trim, and Water Pressure Gauges
- Balanced Weight Distribution & Design
- Trac-Tight™ Handling
- 37-Gallon Fuel Tank
ADVANCED ELECTRONICS

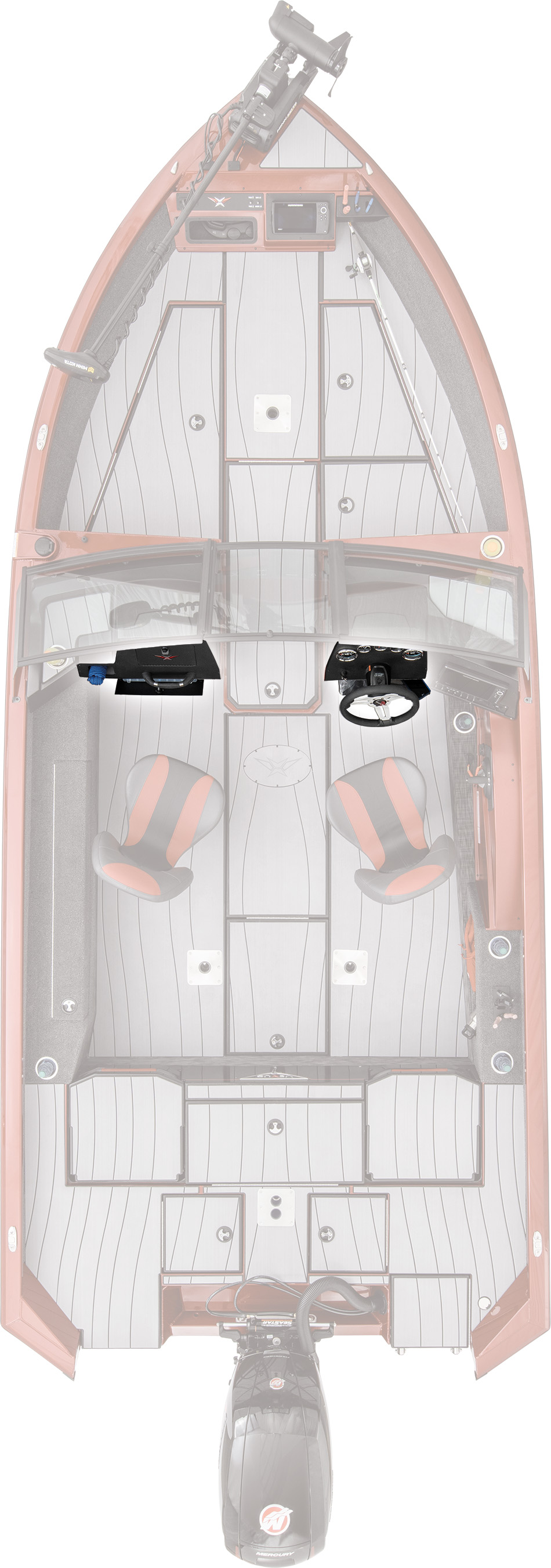

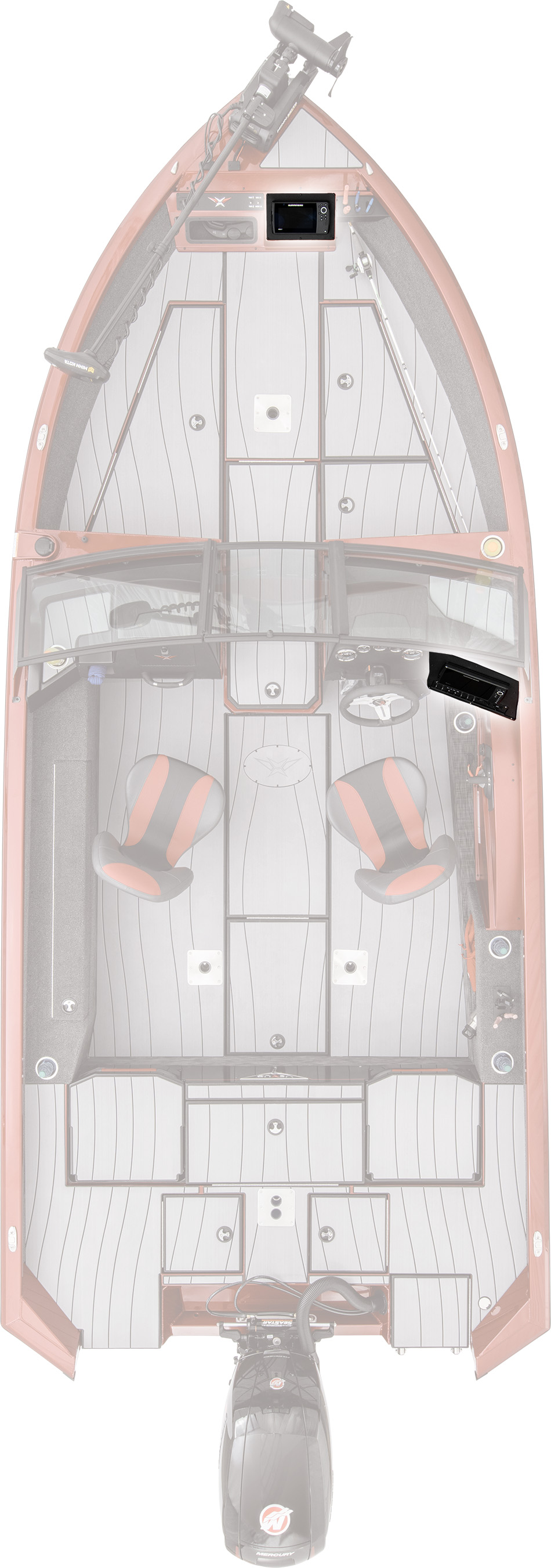

- Wide Variety of Custom Factory-Rigged Electronics
- 6 Gauge Trolling Motor Wiring
- Minn Kota Terrova 80/DSC/WR-60”
- Storage in Cockpit Floor for (3) Trolling Motor Batteries
- Dual Pro 6 X 3 On-Board Battery Charger
- USB & 12V Power Outlets
- Bilge Pump

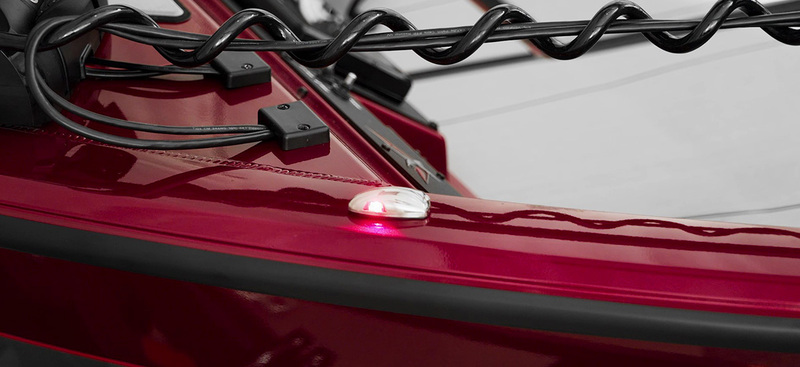

- Integrated LED Bow Lights with Removable Stern Navigation Light
- Master Switch and Breakers
- Lit-Tip Toggle Switches with Convenient Resettable Breakers
- LED Light Under Driver Console
- Integrated Horn Assembly
COMFORT AND CONVENIENCE
- Custom-contoured High Performance Centric Seats (3) with Pedestals

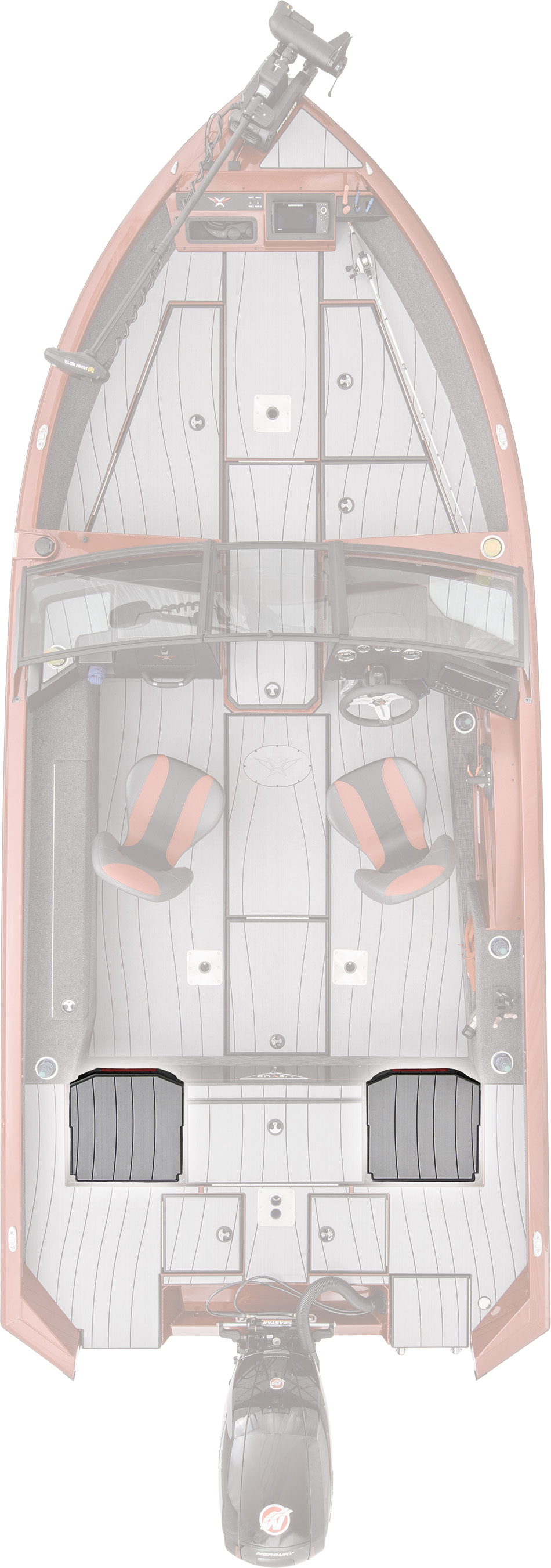

- Molded Fiberglass Jump Seats (2) with Under-Seat Storage

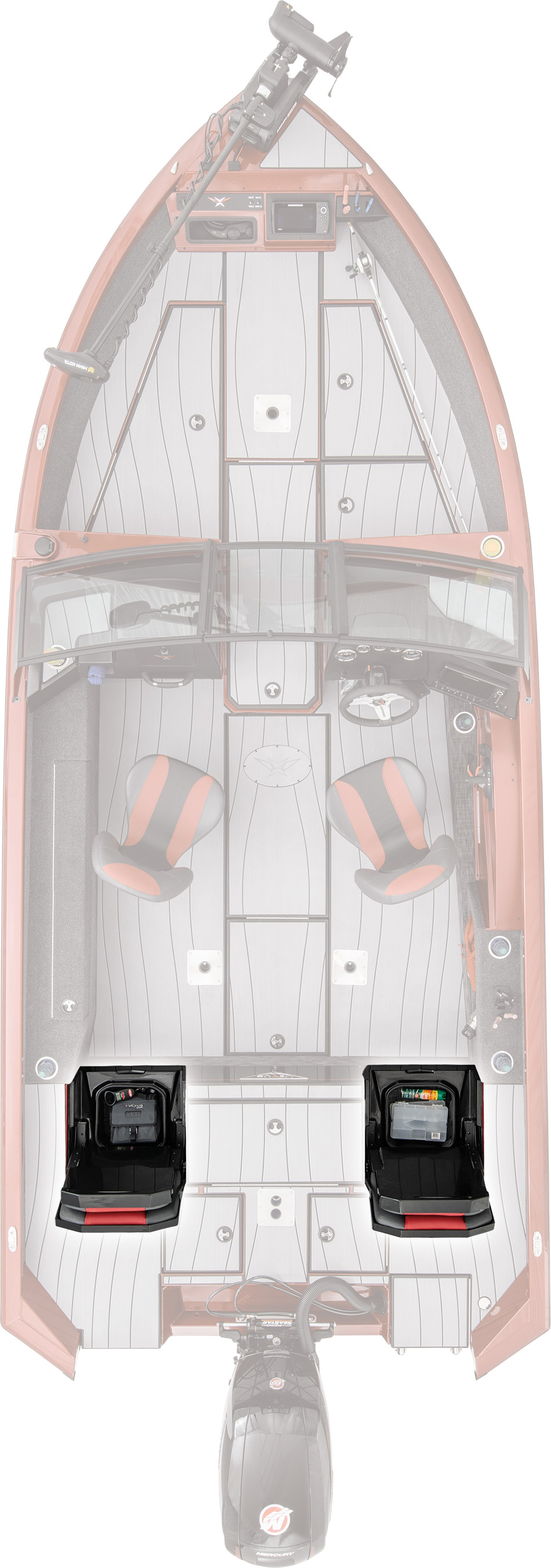

- Oversized Storage Boxes with Weather Trim Seal

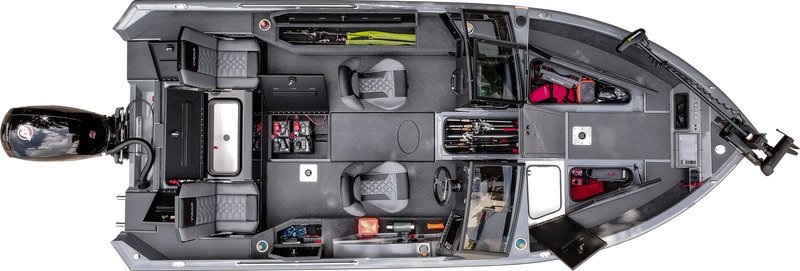

- Wide Open Spacious Interior with Cockpit Depth of 24.5"
- Greater Deck, Leg, and Console Room
- Aluminum Decks and Floors
- Compression Lid Latches
- Painted Underside of Lids
- Integrated Cup Holders (6)
- Stainless Steel Bow and Stern Eyes
- Lockable Storage and Rod Boxes
- Stainless Steel Boarding Ladder
- 3-Position Livewell Control
- Upright Level Flotation
- Stainless Steel Pop-Up Cleats
- Fold Out Storage Under Driver and Passenger Consoles for Tackle Trays or Trash Bag
- Front Deck Accomodates 6'6" Horizontal Rod Storage

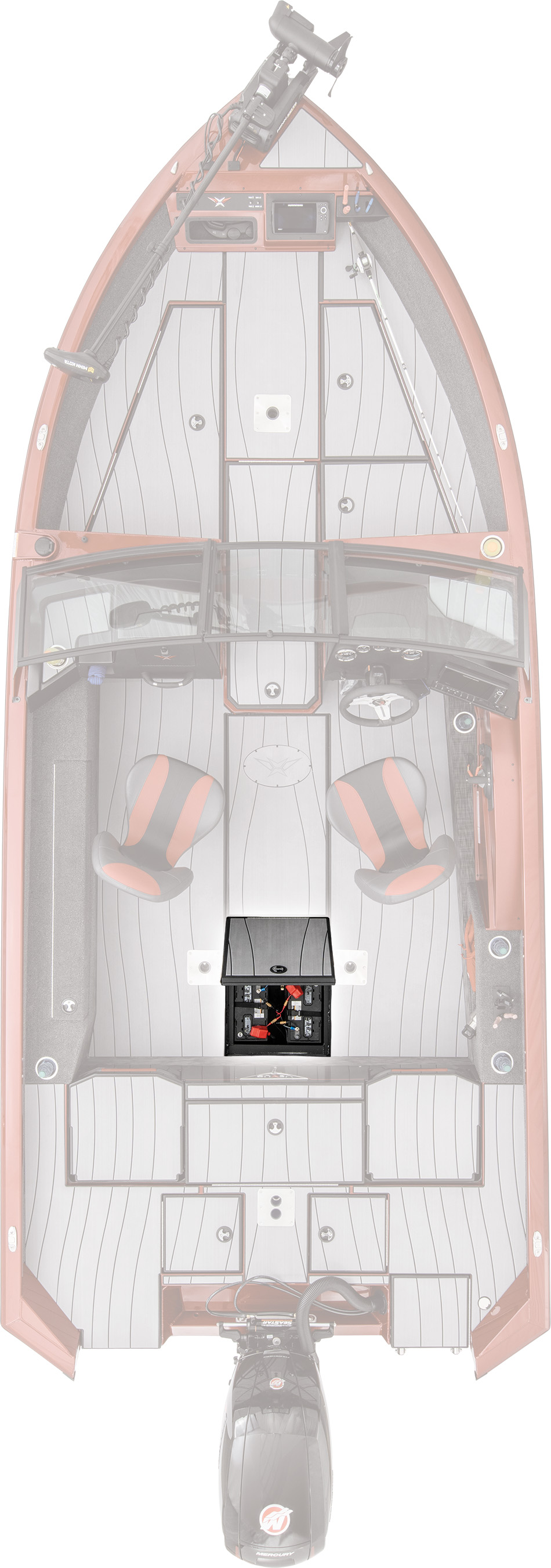

- Center Rod and Tackle Storage with Dual Lift Assist
- Port Side Rod Storage with Tubes
- Integrated Tool Storage Forward and Aft
- Injected Closed Cell Foam with Sound Dampening Advantage
HANDCRAFTED DETAILS
- Hard Case™ Paint with Clear Coat Protection
- Stretch-Form Gunnels

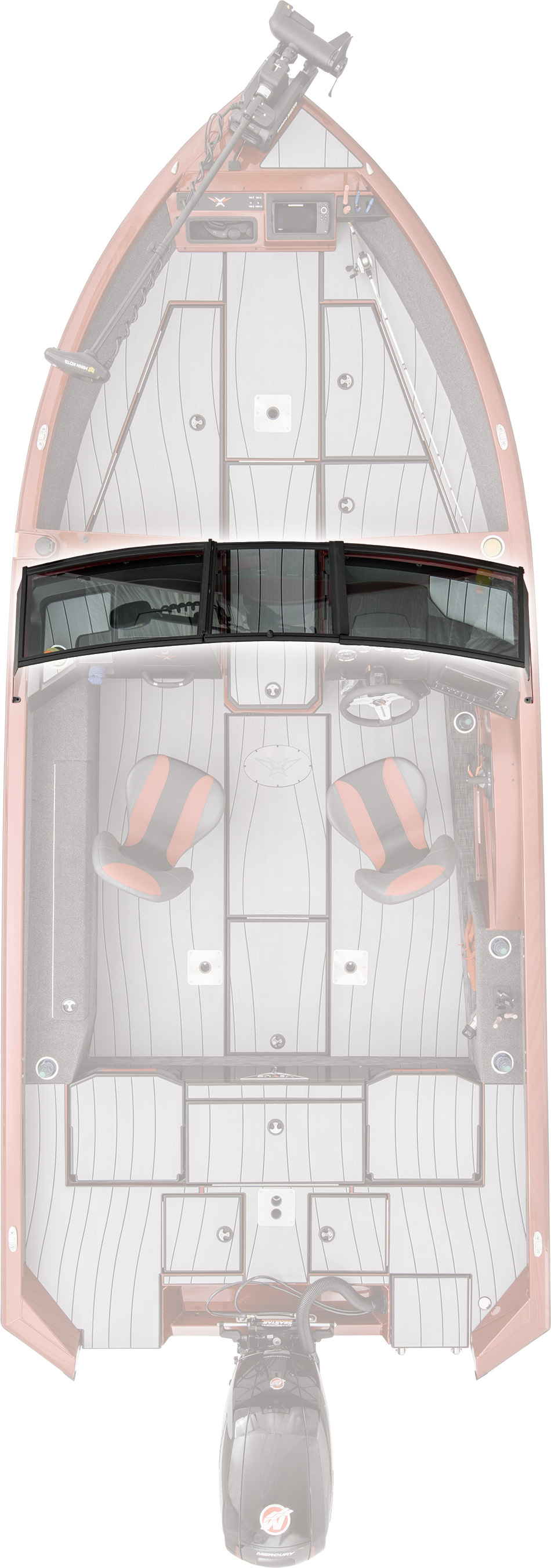

- Automotive Quality Walk-Through Windshield
- High-Density Polyethylene on Decks, Lids, and Cockpit Floor
- Custom Painted-to-Match Fiberglass Console (No Plastic)
- All Exterior Surfaces Painted
- Lid Undersides Painted
- Large Diameter SS Seat Pedestals
- Marine Grade Carpet
- Fiberglass Control and Bow Panels
- Wood-Free Construction

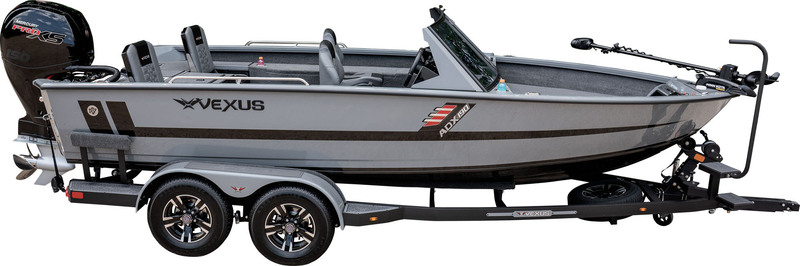

TRAILER FEATURES
- 4" Channel Frame
- 14" Aluminum Wheels with Radial Tires
- Skid-Resistant Step Pads
- Custom Painted Fenders to Match with Clear Coat
- Hydraulic Surge Disc Brakes
- LED Lighting with Back-Up Lights
- Trailer Tongue Jack
- Swing-Away Tongue
- Leaf Spring Axle
- Wire Protected Housing
- Forged (not cut) Transverse Channel Support Beams
- Custom-Fitted Bunks
- Integrated Load Guides
- Victor Shield™ UV Stable Polyurea Coating
- Hybrid Oil Hubs
CAPACITIES AND SPECIFICATIONS
- Length: 19' 3"
- HP: 150 - 175
- Beam: 98"
- Fuel: 37 gallons
- Rod Box Length Port: 8' 8"
- Rod Box Length Center: 8'
- Overall Width: 101"
- Overall Boat/Motor/Trailer Length: 23' 2"
- Overall Boat/Motor/Trailer Length (tongue open, no setback plate): 22' 2"
- Approximate Tow Weight (Boat, Engine, & Trailer): 3900 lbs
- Livewell Capacity: 18 gal
